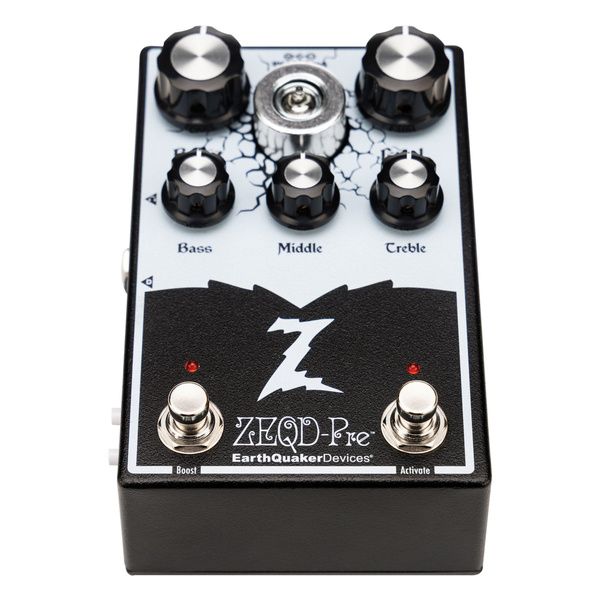

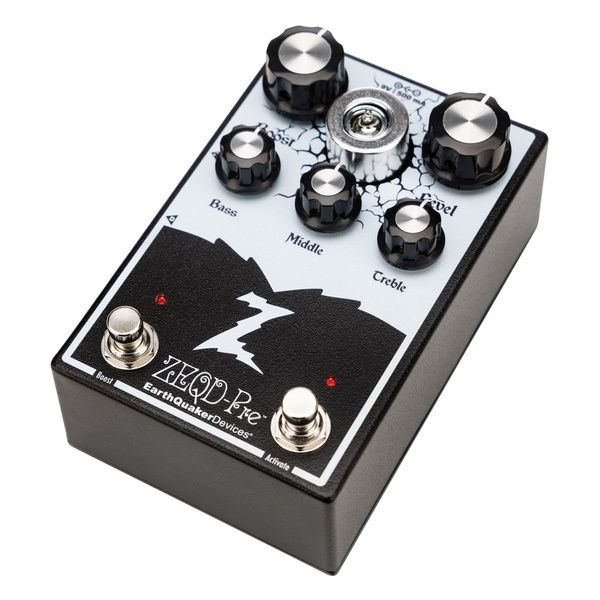

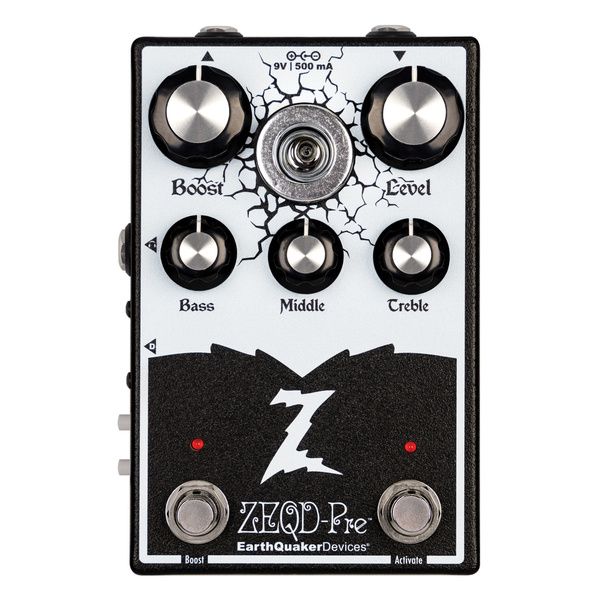

EarthQuaker Devices ZEQD PRE - Tube Preamp/Booster

Effect Pedal for Electric Guitar

• Analogue Tube PreAmp / Booster
• Equipped with 3-band EQl, headphone output, balanced XLR output and analogue cabinet/speaker simulation
• With EF86 tube, placed at the end of the signal chain for dynamics and sound with tube characteristics
• Two sound options: Boost or 3-band EQ with separate level control
• On/Off via Activate footswitch
• The boost footswitch disables the tone control and provides a full-range boost without changing the frequency response
• Active when the activation switch is turned on
• Bass EQ: 20 to 400 Hz
• Midrange EQ: 400 Hz to 2,000 Hz
• Treble EQ: 2,000 to 20,000 Hz
• Level control for the output when the tone controls are active
• Boost control for the output when the boost is active and the tone controls are bypassed

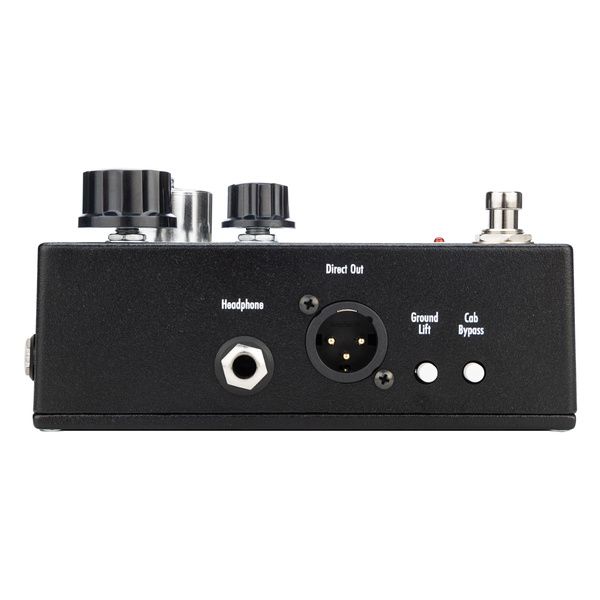

• Ground lift switch (side) to disconnect the XLR output from the ground network
• Cab Bypass (side) activates/deactivates the analogue cabinet simulation on the XLR output
• Side headphone output: 6.3 mm stereo jack / 1/4" TRS
• Side direct out balanced XLR output
• Mechanical true bypass footswitch
• Headphone output impedance: 39 ohm
• Status LEDs

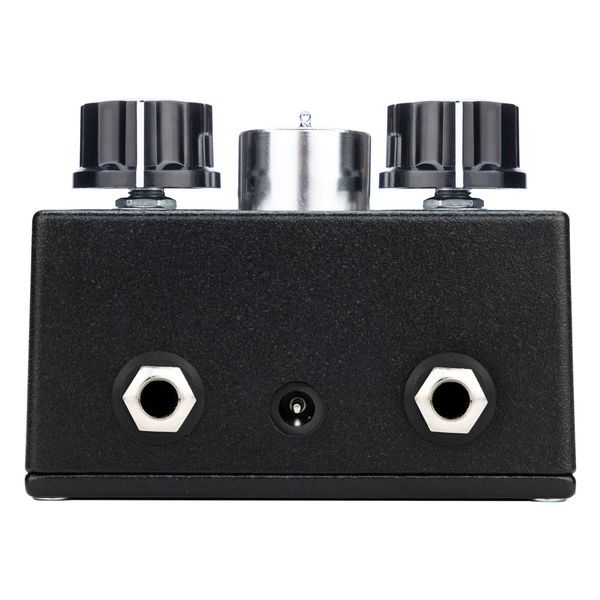

• Input and output: 6.3 mm mono jack
• Power supply with optional 9 V DC mains adapter (not included), 2.1 x 5.5 mm barrel connector, centre negative
• Power consumption: 500 mA
• Dimensions (L x W x H): 149 x 100 x 70 mm
• Weight: 569 g
• Made in USA
