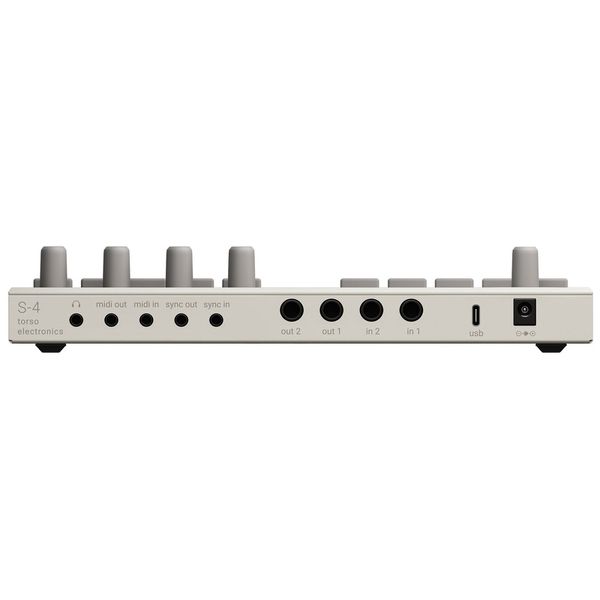

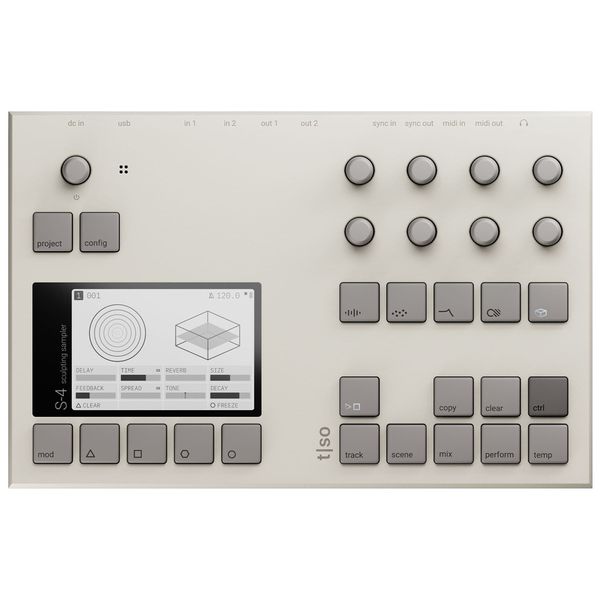

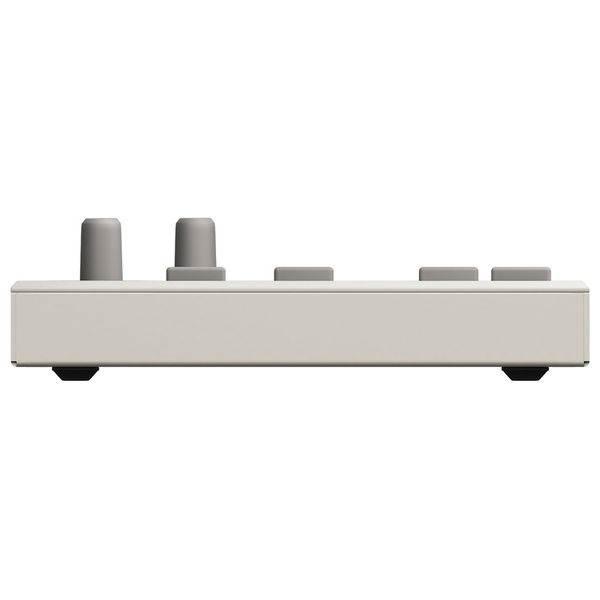

Torso Electronics S4 White

Sculpting Sampler

• Stereo Granular Sampler and Audio Processor
• 4 Parallel stereo tracks, each with a signal chain consisting of 5 processing stages: Material, Granular, Filter, Colour and Space
• Material: Signal source for further sound processing, e.g. a sample from the internal memory, recording of a new sample, overdub and sound-on-sound loops
• Real-time processing of external sources or 8-voice polyphonic sampler
• Granular: 4 second audio buffer with 128 grains and control over size, distribution, shape and pitch of the grains
• Filter: 48-band resonator filter bank for wide-ranging sound shaping and emulation of classic low-pass, band-pass and high-pass filter characteristics
• Colour: Destructive effect block with dual-band distortion, bit crusher, compressor and noise generator
• Space: Stereo reverb and delay effect with freeze function
• 4 Freely assignable modulators per track - each modulator can function as an LFO, random source or ADSR envelope and can be assigned to multiple modulation destinations
• Master section with 4-channel mixer
• DJ filter (low-pass / high-pass) per channel and summing compressor
• Colour: White
• Includes external power supply (DC 12 V/2 A) and MIDI adapter (3.5 mm mini jack to 5-pin DIN)

Technical specifications:

• Operation and programming via 9 encoders and 21 illuminated buttons
• 3.5" LC colour display
• 24-Bit / 48kHz audio processing in stereo
• WiFi for synchronisation with Ableton Link
• Class compliant USB audio interface with USB-C port
• Line input: 2 x 6.3 mm jack
• Line output: 2 x 6.3 mm jack
• MIDI In/Out: 3.5 mm TRS mini jack, type A
• Sync input and output: 3.5 mm mini jack
• Stereo headphone output: 3.5 mm TRS mini jack
• Dimensions (W x D x H): 242 x 156 x 39 mm
• Weight: 820 g
